Additional Photos
The number of horizontal and vertical dividers will vary on all window styles with colonial dividers. The number of dividers is based the size of your window. Diamond pattern available upon request.
|
Dual Pane Insulated Glass:
Dual pane insulated glass consists of two panes of glass that are sealed together resulting in one dead air space in between the glass – the dead air space is an insulator. Our overall insulated glass measures 7/8” thick. A dead air space between the glass of at least 3/4” is optimal for allowing air to act as an insulator. Any dead air space over 3/4” does not provide more insulation. Having dual pane glass greatly reduces heat and sound transfer.
Triple Pane Insulated Glass:
Triple pane insulated glass consists of three panes of glass that are sealed together resulting in two dead air spaces in between the glass. Triple pane glass reduces the heat and sound transfer more than dual pane insulated glass.
Low-E:
Low-E stands for low emissivity. It is a very thin metallic coating that allows the sun’s light to pass through the insulating glass, but, at the same time reflects radiant heat back toward its source. It helps keep your home warmer in the winter by trapping radiant heat in your home. And it helps keep your home cooler in the summer by blocking radiant heat from entering your home. The low-e glass provided in your windows results in minimal visible darkening which has been a common problem with some low-e glass. Also it minimizes interior glare, reducing eyestrain and making it easier to watch television or look at a computer screen when bright sunlight fills a room.
Argon Gas:
Argon is a nontoxic, nonreactive, clear, and odorless gas . It is put in the air space(s) of your dual and triple pane insulated glass. Argon gas is less heavy and slower-moving than air and thus minimizes convection currents within the dead air space. Conduction through the gas is reduced, and the overall transfer of heat is reduced.
Warm Edge Spacer:
The panes of glass in dual or triple pane insulating glass are held together by a spacer. The spacer runs along the entire perimeter of your insulating glass. The edge of the glass is the coldest part of any window. So the spacer is very important. The Warm Edge Spacer System reduces thermal transfer at the edge of the glass by utilizing a unique U-shaped channel to separate the glass panes and interrupt the natural flow of heat to cold. It flexes with glass expansion and contraction to ensure a strong seal for the life of the window.
Optional Advanced Easy Clean® Glass is a remarkable advancement in glass design that eliminates frequent exterior window cleaning. Windows and doors with special Easy Clean Glass require less effort to clean than windows with ordinary glass.

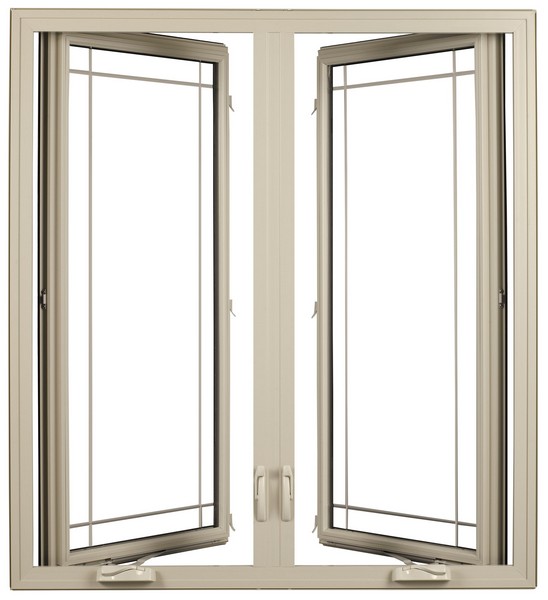

Your windows will be entirely fusion welded – sashes and mainframes – to create a solid, one-piece unit that maintains its strength over the years. We offer a state-of-the-art fusion process that ensures frame and sash corners won't have the excess variance found with other welding techniques. (Pictured is a Crank-Out window style.) |
|
|
|
R-Core® insulation is pre-expanded high-density solid-polyurethane which is the same material type used in many refrigerator/freezer doors. It prevents voids and settling and results in even distribution of the maximum insulating barrier. Premium Series only. (Not available on garden windows, basement windows or sliding doors.) |
|

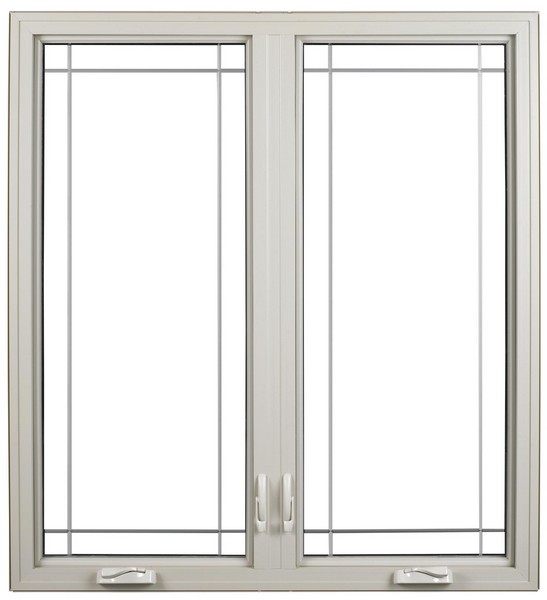

Crank-Out Casement Window Specifications
Minimums and Maximums |
Single |
|
|
|
Twin |
|
|
|
|
Triple |
|
|
|
|
Quad |
|
|
|
Fixed |
|
||||||||||||||
|
Minimum Width |
|
|
|
|
14 5/8 |
|
28 3/4 |
|
|
|
42 3/4 |
|
|
|
56 7/8 |
|
|
13 5/8 |
|
||||||||||||||
|
Minimum Height |
|
|
|
|
22 |
|
22 |
|
|
|
22 |
|
|
|
22 |
|
|
13 5/8 |
|
||||||||||||||
|
Maximum Width |
|
|
|
|
36 |
|
72 |
|
|
|
120 |
|
|
|
120 |
|
|
84 |
|
||||||||||||||
|
Maximum Height |
|
|
|
|
76 |
|
72 |
|
|
|
72 |
|
|
|
66 |
|
|
76 |
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Unit Calculations |
|
|
|
Single |
|
|
Twin |
|
|
|
|
Triple |
|
|
|
|
Quad |
|
|
|
Fixed |
|
||||||||||||
|
Glass Width |
|
|
|
|
UW - 4.750" |
|
(UW / 2) - 4.465" |
|
(UW / 3) - 4.370 |
|
|
(UW / 4) - 4.3225 |
|
UW - 4.750" |
|||||||||||||||||||
|
Glass Height |
|
|
|
|
UH - 4.750" |
|
|
UH - 4.750" |
|
|
|
UH - 4.750" |
|
|
|
UH - 4.750" |
|
|
|
UH - 4.750" |
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Egress Width (Std. Hinge) |
UW - 9.500" |
|
|
na |
|
|
|
|
|
na |
|
|
|
|
|
na |
|
|
|
|
|
na |
|
||||||||||
|
Egress Width (Wash Hinge) |
UW - 11.062" |
|
(UW/2) - 10.7095 |
|
(UW/3) - 10.6145 |
|
|
(UW/4) - 10.567 |
|
|
|
na |
|
||||||||||||||||||||
|
Egress Width (Egress Hinge) |
UW - 6.875" |
|
(UW/2) - 6.585 |
|
|
(UW/3) - 6.490 |
|
|
(UW/4) - 6.4425 |
|
|
|
na |
|
|||||||||||||||||||
|
Egress Height (all) |
|
|
UH - 4.364 |
|
|
UH - 4.364 |
|
|
|
UH - 4.364 |
|
|
|
UH - 4.364 |
|
|
|
|
na |
|
|||||||||||||
|
*All Unit Calculations are based on equal sash |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
Standard Hinge 14 5/8" to 23 7/8" wide, Washability Hinge 24" to 36" wide, Egress Hinge 24" to 32" wide |
|
|
|
|
|||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Daylight Width |
|
|
|
GW - 1.250" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
Daylight Height |
|
|
|
GH - 1.250" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Double Strength standard for Glass UI over 80 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
Triple Glazing Maximum = 22 Sq. Ft. of glass area |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||
|
Triple Strength standard for Glass UI over 115 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tempered Glass Requirements |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
Any glass that exceeds 35 sq. feet must be tempered |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||
|
Any glass with a leg length exceeding 90" must be tempered |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Crank-Out Awning Window Specifications
Minimums and Maximums |
|
|
||||||||
|
Minimum Width |
|
|
|
|
= |
18 5/8 |
inches |
||
|
Maximum Width |
|
|
|
|
= |
60 |
inches |
||
|
Minimum Height |
|
|
|
|
= |
16 1/2 |
inches |
||
|
Maximum Height |
|
|
|
|
= |
43 1/4 |
inches |
||
|
Maximum UI |
|
|
|
|
|
= |
89 5/8 |
UI |
|
|
Double Strength standard for Glass UI over 80 |
|
||||||||
|
Triple Glazing Maximum = 22 Sq. Ft. of glass area |
Unit Calculations (Hopper and Awning) |
|
||||||||||||||
|
Glass Width |
|
|
|
|
UW - 4.750" |
|
|
|
|
|||||
|
Glass Height |
|
|
|
|
UH - 4.750" |
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Daylight Width |
|
|
|
GW - 1.250" |
|
|
|
|
||||||
|
Daylight Height |
|
|
|
GH - 1.250" |
|
|
|
|
